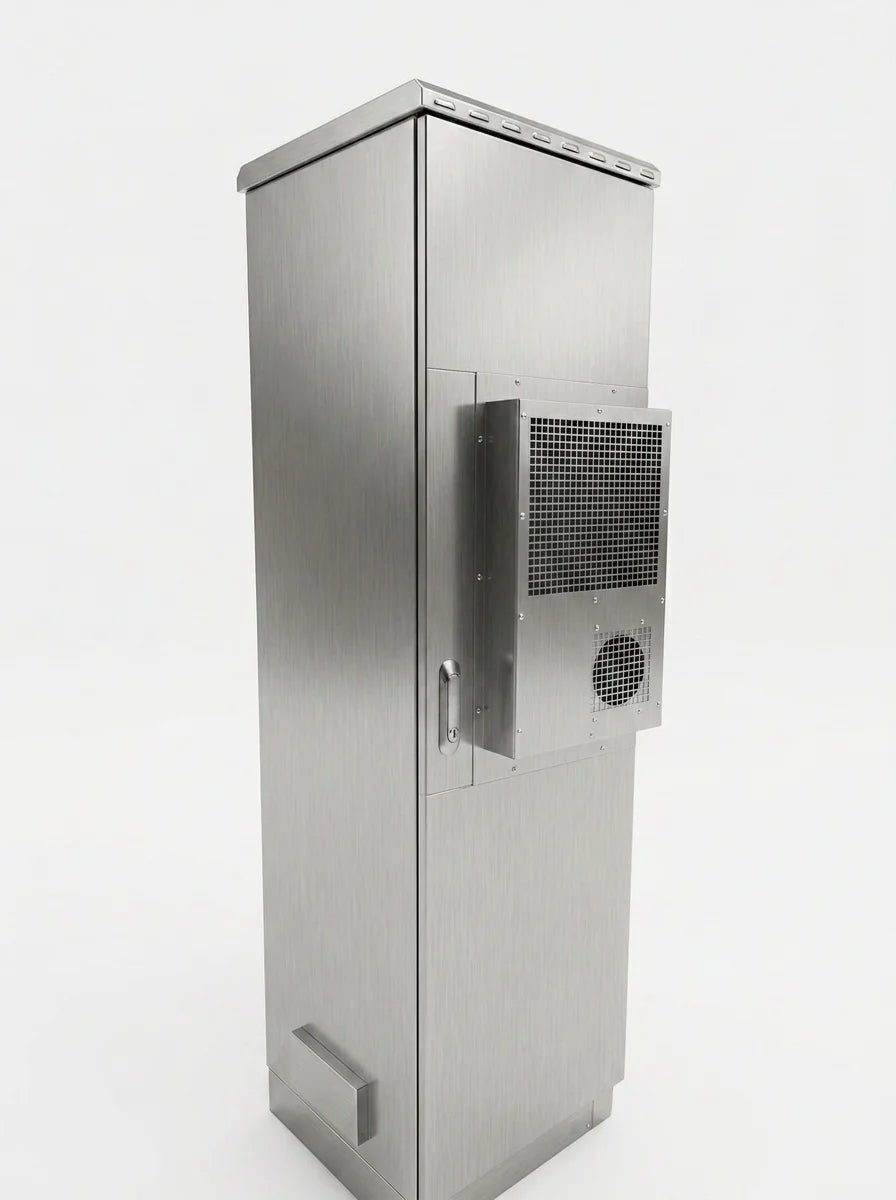

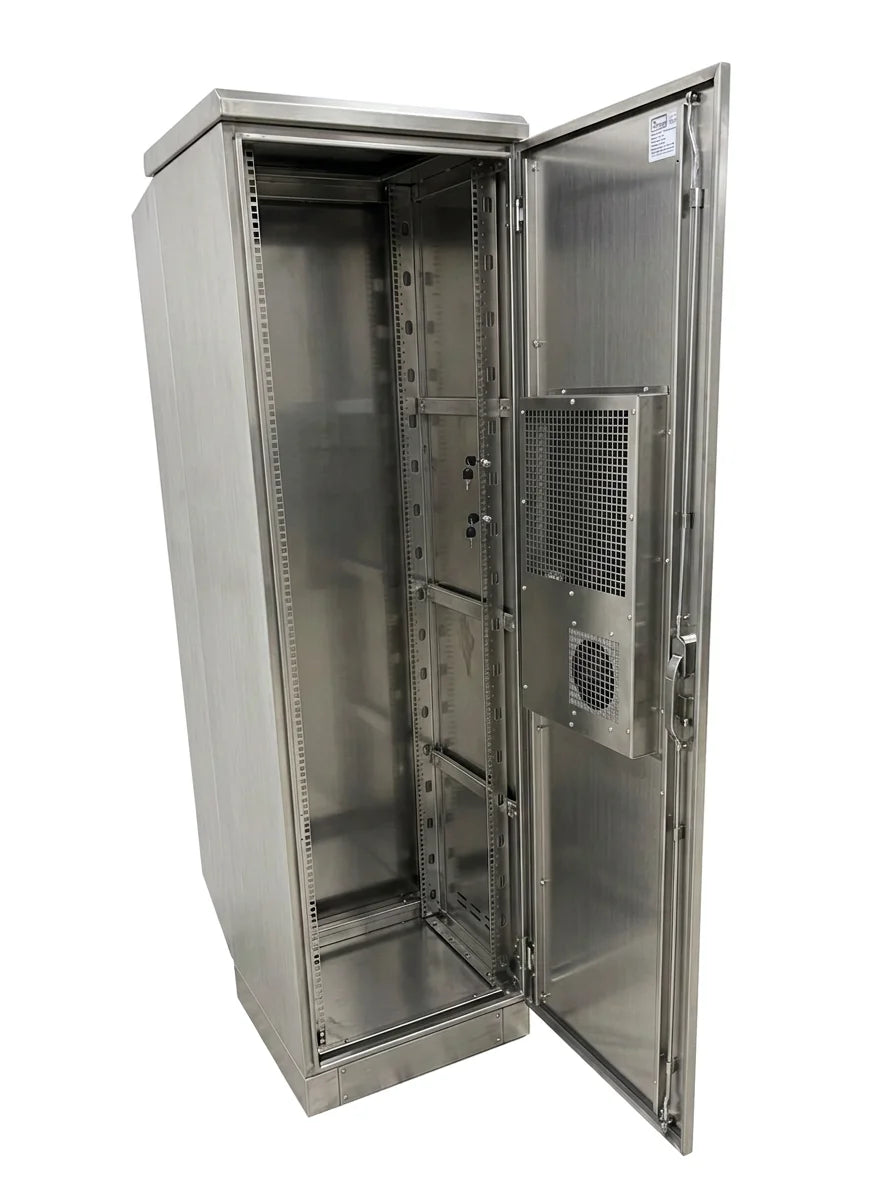

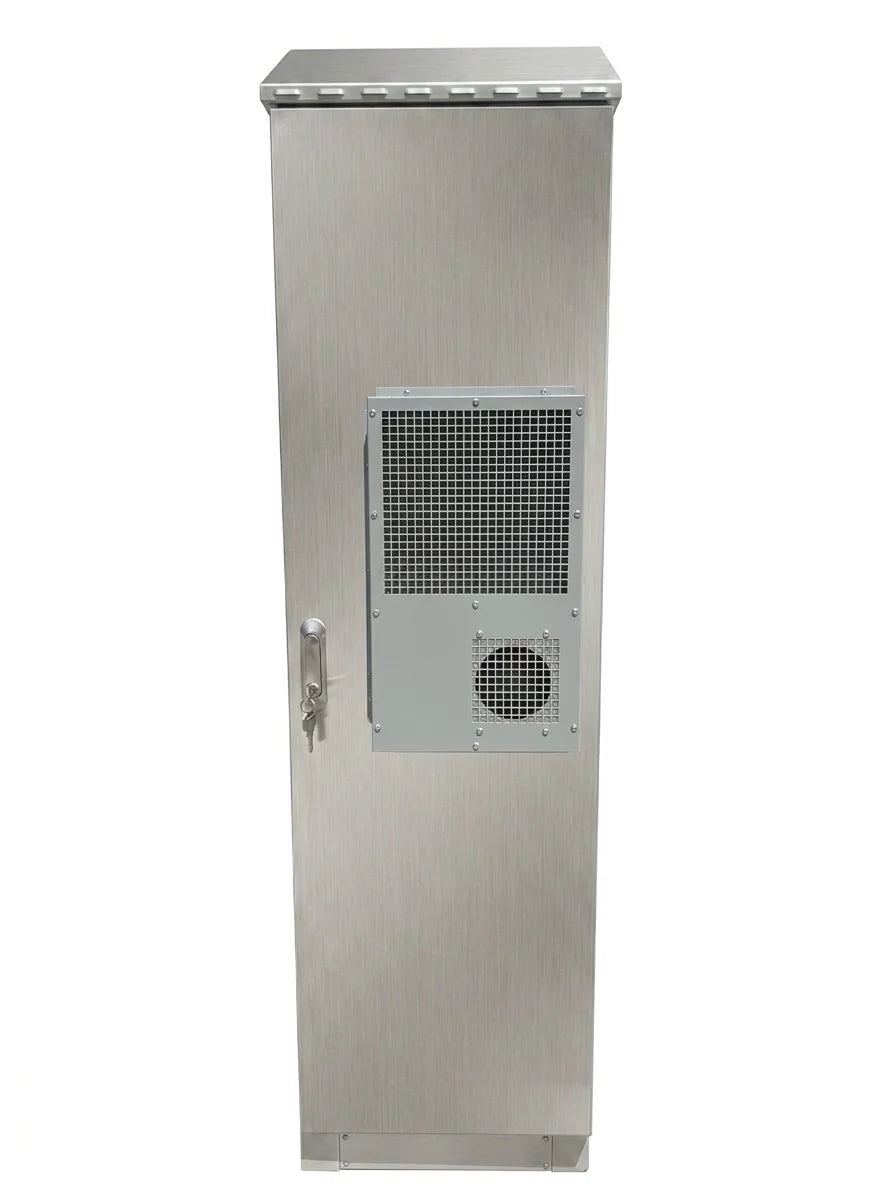

Name: STURDX Climate Series™ 42U IP66 Weatherproof Stainless Steel Outdoor Network Cabinet with Air Conditioner | 32" × 32" (800 × 800 mm) | 19-Inch Rack Enclosure
Brand: STURDX
SKU: STX-CL-42U80802XD-SS
Price: 8900.00 USD
Availability: InStock

{"id":10428004499735,"title":"STURDX Climate Series™ 42U IP66 Weatherproof Stainless Steel Outdoor Network Cabinet with Air Conditioner | 32\" × 32\" (800 × 800 mm) | 19-Inch Rack Enclosure","handle":"42u-outdoor-network-cabinet-enclosure-ip66-rated-weatherproof-for-telecom-fiber-and-server-equipment-stainless-steel-with-air-conditioning-800mm-x-800mm-32-x-32-stv-hc-42u600","description":"\u003ch2\u003eProduct Overview\u003c\/h2\u003e\n\u003cp\u003eWhen outdoor equipment operates in corrosive environments, protecting it from weather alone is not enough. Excessive heat, condensation, salt-laden air, and airborne contaminants can all shorten the life of critical electronics. The \u003cstrong\u003eSTURDX Climate Series™ 42U IP66 Weatherproof Stainless Steel Outdoor Network Cabinet with Air Conditioner (32\" × 32\" \/ 800 × 800 mm)\u003c\/strong\u003e is engineered to address all of these challenges in a single enclosure.\u003c\/p\u003e\n\u003cp\u003eManufactured from \u003cstrong\u003e304 stainless steel\u003c\/strong\u003e with a thermally insulated enclosure design, this cabinet provides long-term corrosion resistance together with reliable active climate control. It is an ideal solution for coastal infrastructure, wastewater treatment facilities, chemical processing plants, food and beverage production, marine applications, renewable energy projects, and other demanding industrial environments. \u003cstrong\u003e316 stainless steel\u003c\/strong\u003e construction is also available for the most aggressive environments.\u003c\/p\u003e\n\u003cp\u003eUnlike conventional outdoor enclosures, every \u003cstrong\u003eSTURDX Climate Series™\u003c\/strong\u003e cabinet is built on our exclusive \u003cstrong\u003eSTURDX Hybrid Cooling Ready™\u003c\/strong\u003e platform. The enclosure is optimized for sealed closed-loop cooling while retaining the flexibility to accept optional filtered fan ventilation through factory-prepared openings protected by removable blanking plates. This allows the cooling strategy to evolve as operating conditions change throughout the life of the installation.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eTechnical Specifications\u003c\/h1\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003eSpecification\u003c\/th\u003e\n\u003cth\u003eValue\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSTURDX Climate Series™\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSKU\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003eSTX-CL-42U80802XD-SS\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRack Height\u003c\/td\u003e\n\u003ctd\u003e42U\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRack Standard\u003c\/td\u003e\n\u003ctd\u003e19-inch EIA-310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eExternal Dimensions\u003c\/td\u003e\n\u003ctd\u003e31.5\" × 31.5\" (800 × 800 mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMaterial\u003c\/td\u003e\n\u003ctd\u003e304 Stainless Steel \u003cem\u003e(316 Stainless Steel Available Upon Request)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConstruction\u003c\/td\u003e\n\u003ctd\u003eInsulated Double-Wall Construction\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection Rating\u003c\/td\u003e\n\u003ctd\u003eIP66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNEMA\u003c\/td\u003e\n\u003ctd\u003eSuitable for NEMA 4X Applications\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eAir Conditioner Ready\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting Rails\u003c\/td\u003e\n\u003ctd\u003eFour Adjustable Rails Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDIN Rail\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoor Switch\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoor Stopper\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCable Glands\u003c\/td\u003e\n\u003ctd\u003eIP68 Rated Included \u003cem\u003e(Optional 316 Stainless Steel Cable Glands Available)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCable Entry\u003c\/td\u003e\n\u003ctd\u003eBottom Knockouts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoors\u003c\/td\u003e\n\u003ctd\u003eLockable Front \u0026amp; Rear\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGrounding\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting Base\u003c\/td\u003e\n\u003ctd\u003eFloor Mounting Base Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLifting\u003c\/td\u003e\n\u003ctd\u003eFactory-Installed Lifting Eyebolts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003chr\u003e\n\u003ch1\u003eStandard Features\u003c\/h1\u003e\n\u003cp\u003eEvery STURDX Climate Series™ cabinet includes:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e304 stainless steel construction\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eThermally insulated enclosure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSTURDX Hybrid Cooling Ready™ platform\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIP66 weatherproof protection\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSuitable for NEMA 4X applications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFactory-prepared air conditioner opening\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCovered fan openings with removable blanking plates\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFour adjustable 19-inch rack rails\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDIN rail installed\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDoor switch installed\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDoor stopper installed\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIP68 cable glands included\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eBottom cable knockouts\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eLockable front and rear doors\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eHeavy-duty polyurethane sealing gasket\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIntegrated grounding system\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFloor mounting base\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFactory-installed lifting eyebolts\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eStainless steel hinges, locks, and external hardware\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eAvailable Air Conditioner Options\u003c\/h1\u003e\n\u003cp\u003eChoose the enclosure cooling system that best matches your equipment requirements using the product options above.\u003c\/p\u003e\n\u003ch3\u003eStandard 110V \/ 60Hz Air Conditioners\u003c\/h3\u003e\n\u003cp\u003eAvailable with either \u003cstrong\u003egalvanized steel\u003c\/strong\u003e or \u003cstrong\u003estainless steel\u003c\/strong\u003e housings.\u003c\/p\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003eCooling Capacity\u003c\/th\u003e\n\u003cth\u003eApprox. BTU\/hr\u003c\/th\u003e\n\u003cth\u003eFeatures\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e300W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈1,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e600W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈2,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2000W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈8,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003eCooling Only + Remote Access models are also available.\u003c\/p\u003e\n\u003ch3\u003eHigh-Capacity Cooling Systems\u003c\/h3\u003e\n\u003cp\u003eFor larger thermal loads, STURDX also offers:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e220V \/ 60Hz\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCooling capacities up to \u003cstrong\u003e6000W\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUp to approximately \u003cstrong\u003e19,000 BTU\/hr\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eContact STURDX for enclosure cooling calculations and product recommendations.\u003c\/p\u003e\n\u003ch3\u003eMade in USA Air Conditioners\u003c\/h3\u003e\n\u003cp\u003eFor customers requiring \u003cstrong\u003eBABA compliance\u003c\/strong\u003e, domestic manufacturing, or enhanced environmental protection, STURDX also offers \u003cstrong\u003eMade in USA IP66 stainless steel enclosure air conditioners\u003c\/strong\u003e in multiple capacities.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eBuilt for Critical Infrastructure\u003c\/h1\u003e\n\u003cp\u003eMany outdoor enclosures are installed where equipment failure is simply not an option.\u003c\/p\u003e\n\u003cp\u003eThe Climate Series™ is frequently selected for applications supporting:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003ePublic communication networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIndustrial process automation\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUtility monitoring systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eTransportation control equipment\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eRenewable energy infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMarine communications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCritical security systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMunicipal broadband\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eEdge computing installations\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eIts corrosion-resistant construction and climate-controlled design help provide stable operating conditions that improve equipment reliability year after year.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eWhy an 800 mm Wide Cabinet?\u003c\/h1\u003e\n\u003cp\u003eThe wider enclosure isn't designed simply to hold more equipment—it is designed to make better use of the equipment already installed.\u003c\/p\u003e\n\u003cp\u003eThe additional width allows:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eCleaner fiber management\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eBetter separation of low-voltage and power wiring\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eEasier access around networking equipment\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eImproved installation of rack accessories\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMore organized service loops\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSimplified maintenance procedures\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eGreater flexibility for future upgrades\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eFor complex outdoor networking installations, improved organization often becomes just as valuable as additional rack capacity.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eSTURDX Hybrid Cooling Ready™\u003c\/h1\u003e\n\u003cp\u003eEvery Climate Series™ enclosure leaves the factory prepared for sealed closed-loop air conditioning while preserving the ability to add optional filtered fan ventilation later through factory-prepared openings.\u003c\/p\u003e\n\u003cp\u003eBecause no drilling or enclosure modifications are required, owners can adapt their cooling strategy over time without replacing the cabinet or compromising its structural integrity.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eProduct Description\u003c\/h1\u003e\n\u003cp\u003eThe \u003cstrong\u003eSTURDX Climate Series™ 42U Stainless Steel Outdoor Network Cabinet\u003c\/strong\u003e combines corrosion-resistant materials, advanced environmental protection, and flexible cooling options in a single outdoor enclosure designed for mission-critical applications.\u003c\/p\u003e\n\u003cp\u003eIts 800 mm wide interior provides generous workspace for organized equipment layouts while accommodating enterprise switches, industrial controllers, fiber optic distribution systems, UPS equipment, communication hardware, and power distribution assemblies.\u003c\/p\u003e\n\u003cp\u003eDesigned for years of dependable outdoor service, the Climate Series™ helps protect valuable electronics while reducing maintenance demands across some of the world's most demanding operating environments.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eTypical Applications\u003c\/h1\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eCoastal Telecommunications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMarine Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUtility Substations\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eWater \u0026amp; Wastewater Treatment\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFood Processing Facilities\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003ePharmaceutical Manufacturing\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eChemical Processing\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIndustrial Automation\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFiber Backbone Networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eEdge Computing\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eRenewable Energy\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSolar Farms\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eWind Energy\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSmart Grid Systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eTransportation Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSecurity Networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eOil \u0026amp; Gas\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMining\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eElectrical Distribution\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCritical Communications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eFrequently Asked Questions\u003c\/h1\u003e\n\u003ch3\u003eWhy choose a stainless steel climate-controlled cabinet?\u003c\/h3\u003e\n\u003cp\u003eWhen electronics operate in corrosive outdoor environments and generate heat, combining stainless steel construction with active climate control helps maximize equipment life, improve reliability, and reduce maintenance.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhy choose an 800 mm wide enclosure?\u003c\/h3\u003e\n\u003cp\u003eThe wider cabinet provides additional space for organized cable routing, larger rack accessories, improved service access, and cleaner equipment layouts—particularly for complex networking and industrial control systems.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhat is STURDX Hybrid Cooling Ready™?\u003c\/h3\u003e\n\u003cp\u003eSTURDX Hybrid Cooling Ready™ is our factory-prepared cooling platform that supports sealed closed-loop air conditioning while allowing optional filtered fan ventilation to be added later using removable blanking plates.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhy is the air conditioner shipped separately?\u003c\/h3\u003e\n\u003cp\u003eUnless factory installation is specifically requested, the air conditioner is shipped separately to minimize the risk of shipping damage. Every cabinet is factory-prepared with the required mounting cutout for straightforward installation on site.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eAre stainless steel air conditioners available?\u003c\/h3\u003e\n\u003cp\u003eYes. Standard enclosure air conditioners are available with \u003cstrong\u003estainless steel housings\u003c\/strong\u003e, and STURDX also offers \u003cstrong\u003eMade in USA IP66 stainless steel air conditioners\u003c\/strong\u003e for BABA-compliant and high-specification projects.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eIs 316 stainless steel available?\u003c\/h3\u003e\n\u003cp\u003eYes. Standard production uses \u003cstrong\u003e304 stainless steel\u003c\/strong\u003e, while \u003cstrong\u003e316 stainless steel\u003c\/strong\u003e and optional \u003cstrong\u003e316 stainless steel IP68 cable glands\u003c\/strong\u003e are available for offshore, marine, wastewater, and aggressive chemical environments.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eCan this enclosure be customized?\u003c\/h3\u003e\n\u003cp\u003eAbsolutely. STURDX offers custom dimensions, 304 or 316 stainless steel construction, OEM branding, electrical integration, cable entry modifications, project-specific cooling systems, and application-specific accessories engineered for virtually any outdoor installation.\u003c\/p\u003e","published_at":"2026-09-02T17:23:55-05:00","created_at":"2026-07-20T02:52:06-05:00","vendor":"STURDX ","type":"Floor Standing Outdoor Network Cabinets","tags":["19\" Equipment Mounting","19\" Rack Systems","All-Weather Network Cabinet","Custom-Made Outdoor Cabinets","Dust and Water Protection","Environmental Protection Cabinet","Environments","Equipment Protection","Exterior Network Rack Enclosure","Galvanized Steel Construction","IP54 Fan and Filter Compatibility","IP55 Rated Cabinet","IP55 Rated Network Cabinet","Network Cabinet for Harsh","Network Rack for Outdoor Use","Outdoor Data Center Cabinet","Outdoor Electronics Enclosure","Outdoor IT Cabinet","Outdoor IT Rack Cabinet","Outdoor Network Cabinet","Outdoor Network Cabinet Solutions","Outdoor Network Equipment Cabinet","Outdoor Network Equipment Protection","Outdoor Network Server Cabinet","Outdoor Network Storage Cabinet","Outdoor Rack Cabinet","Outdoor Server Cabinet","Pole or Wall Mountable Cabinet","Rack Cabinet Solution","Ral 7035 Epoxy Coating","Vatpan Rack Cabinet","Waterproof Network Rack Cabinet","Watertight Seal","Weatherproof Network Enclosure"],"price":890000,"price_min":890000,"price_max":890000,"available":true,"price_varies":false,"compare_at_price":1560000,"compare_at_price_min":1560000,"compare_at_price_max":1560000,"compare_at_price_varies":false,"variants":[{"id":54159271297303,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"STX-CL-42U80802XD-SS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STURDX Climate Series™ 42U IP66 Weatherproof Stainless Steel Outdoor Network Cabinet with Air Conditioner | 32\" × 32\" (800 × 800 mm) | 19-Inch Rack Enclosure","public_title":null,"options":["Default Title"],"price":890000,"weight":0,"compare_at_price":1560000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-stainless-cabinet-front-angle-cooling.webp?v=1786697431","\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-outdoor-cabinet-stainless-air-conditioner.webp?v=1786697430","\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-cabinet-open-door-interior-with-cooling.webp?v=1786697431"],"featured_image":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-stainless-cabinet-front-angle-cooling.webp?v=1786697431","options":["Title"],"media":[{"alt":"STURDX 42U stainless cabinet at a front angle with air conditioning fitted","id":44286534451479,"position":1,"preview_image":{"aspect_ratio":0.747,"height":1200,"width":896,"src":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-stainless-cabinet-front-angle-cooling.webp?v=1786697431"},"aspect_ratio":0.747,"height":1200,"media_type":"image","src":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-stainless-cabinet-front-angle-cooling.webp?v=1786697431","width":896},{"alt":"STURDX 42U outdoor cabinet in stainless steel with an air conditioner fitted","id":44286534517015,"position":2,"preview_image":{"aspect_ratio":0.747,"height":1200,"width":896,"src":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-outdoor-cabinet-stainless-air-conditioner.webp?v=1786697430"},"aspect_ratio":0.747,"height":1200,"media_type":"image","src":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-outdoor-cabinet-stainless-air-conditioner.webp?v=1786697430","width":896},{"alt":"STURDX 42U cabinet open door interior with cooling and RAL7035 finish","id":44286534484247,"position":3,"preview_image":{"aspect_ratio":0.747,"height":1200,"width":896,"src":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-cabinet-open-door-interior-with-cooling.webp?v=1786697431"},"aspect_ratio":0.747,"height":1200,"media_type":"image","src":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/sturdx-forty-two-u-cabinet-open-door-interior-with-cooling.webp?v=1786697431","width":896}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eProduct Overview\u003c\/h2\u003e\n\u003cp\u003eWhen outdoor equipment operates in corrosive environments, protecting it from weather alone is not enough. Excessive heat, condensation, salt-laden air, and airborne contaminants can all shorten the life of critical electronics. The \u003cstrong\u003eSTURDX Climate Series™ 42U IP66 Weatherproof Stainless Steel Outdoor Network Cabinet with Air Conditioner (32\" × 32\" \/ 800 × 800 mm)\u003c\/strong\u003e is engineered to address all of these challenges in a single enclosure.\u003c\/p\u003e\n\u003cp\u003eManufactured from \u003cstrong\u003e304 stainless steel\u003c\/strong\u003e with a thermally insulated enclosure design, this cabinet provides long-term corrosion resistance together with reliable active climate control. It is an ideal solution for coastal infrastructure, wastewater treatment facilities, chemical processing plants, food and beverage production, marine applications, renewable energy projects, and other demanding industrial environments. \u003cstrong\u003e316 stainless steel\u003c\/strong\u003e construction is also available for the most aggressive environments.\u003c\/p\u003e\n\u003cp\u003eUnlike conventional outdoor enclosures, every \u003cstrong\u003eSTURDX Climate Series™\u003c\/strong\u003e cabinet is built on our exclusive \u003cstrong\u003eSTURDX Hybrid Cooling Ready™\u003c\/strong\u003e platform. The enclosure is optimized for sealed closed-loop cooling while retaining the flexibility to accept optional filtered fan ventilation through factory-prepared openings protected by removable blanking plates. This allows the cooling strategy to evolve as operating conditions change throughout the life of the installation.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eTechnical Specifications\u003c\/h1\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003eSpecification\u003c\/th\u003e\n\u003cth\u003eValue\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSTURDX Climate Series™\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSKU\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003eSTX-CL-42U80802XD-SS\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRack Height\u003c\/td\u003e\n\u003ctd\u003e42U\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRack Standard\u003c\/td\u003e\n\u003ctd\u003e19-inch EIA-310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eExternal Dimensions\u003c\/td\u003e\n\u003ctd\u003e31.5\" × 31.5\" (800 × 800 mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMaterial\u003c\/td\u003e\n\u003ctd\u003e304 Stainless Steel \u003cem\u003e(316 Stainless Steel Available Upon Request)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConstruction\u003c\/td\u003e\n\u003ctd\u003eInsulated Double-Wall Construction\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection Rating\u003c\/td\u003e\n\u003ctd\u003eIP66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNEMA\u003c\/td\u003e\n\u003ctd\u003eSuitable for NEMA 4X Applications\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eAir Conditioner Ready\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting Rails\u003c\/td\u003e\n\u003ctd\u003eFour Adjustable Rails Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDIN Rail\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoor Switch\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoor Stopper\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCable Glands\u003c\/td\u003e\n\u003ctd\u003eIP68 Rated Included \u003cem\u003e(Optional 316 Stainless Steel Cable Glands Available)\u003c\/em\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCable Entry\u003c\/td\u003e\n\u003ctd\u003eBottom Knockouts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoors\u003c\/td\u003e\n\u003ctd\u003eLockable Front \u0026amp; Rear\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGrounding\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting Base\u003c\/td\u003e\n\u003ctd\u003eFloor Mounting Base Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLifting\u003c\/td\u003e\n\u003ctd\u003eFactory-Installed Lifting Eyebolts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003chr\u003e\n\u003ch1\u003eStandard Features\u003c\/h1\u003e\n\u003cp\u003eEvery STURDX Climate Series™ cabinet includes:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e304 stainless steel construction\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eThermally insulated enclosure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSTURDX Hybrid Cooling Ready™ platform\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIP66 weatherproof protection\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSuitable for NEMA 4X applications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFactory-prepared air conditioner opening\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCovered fan openings with removable blanking plates\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFour adjustable 19-inch rack rails\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDIN rail installed\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDoor switch installed\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDoor stopper installed\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIP68 cable glands included\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eBottom cable knockouts\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eLockable front and rear doors\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eHeavy-duty polyurethane sealing gasket\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIntegrated grounding system\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFloor mounting base\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFactory-installed lifting eyebolts\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eStainless steel hinges, locks, and external hardware\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eAvailable Air Conditioner Options\u003c\/h1\u003e\n\u003cp\u003eChoose the enclosure cooling system that best matches your equipment requirements using the product options above.\u003c\/p\u003e\n\u003ch3\u003eStandard 110V \/ 60Hz Air Conditioners\u003c\/h3\u003e\n\u003cp\u003eAvailable with either \u003cstrong\u003egalvanized steel\u003c\/strong\u003e or \u003cstrong\u003estainless steel\u003c\/strong\u003e housings.\u003c\/p\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003eCooling Capacity\u003c\/th\u003e\n\u003cth\u003eApprox. BTU\/hr\u003c\/th\u003e\n\u003cth\u003eFeatures\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e300W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈1,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e600W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈2,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2000W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈8,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003eCooling Only + Remote Access models are also available.\u003c\/p\u003e\n\u003ch3\u003eHigh-Capacity Cooling Systems\u003c\/h3\u003e\n\u003cp\u003eFor larger thermal loads, STURDX also offers:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e220V \/ 60Hz\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCooling capacities up to \u003cstrong\u003e6000W\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUp to approximately \u003cstrong\u003e19,000 BTU\/hr\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eContact STURDX for enclosure cooling calculations and product recommendations.\u003c\/p\u003e\n\u003ch3\u003eMade in USA Air Conditioners\u003c\/h3\u003e\n\u003cp\u003eFor customers requiring \u003cstrong\u003eBABA compliance\u003c\/strong\u003e, domestic manufacturing, or enhanced environmental protection, STURDX also offers \u003cstrong\u003eMade in USA IP66 stainless steel enclosure air conditioners\u003c\/strong\u003e in multiple capacities.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eBuilt for Critical Infrastructure\u003c\/h1\u003e\n\u003cp\u003eMany outdoor enclosures are installed where equipment failure is simply not an option.\u003c\/p\u003e\n\u003cp\u003eThe Climate Series™ is frequently selected for applications supporting:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003ePublic communication networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIndustrial process automation\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUtility monitoring systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eTransportation control equipment\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eRenewable energy infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMarine communications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCritical security systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMunicipal broadband\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eEdge computing installations\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eIts corrosion-resistant construction and climate-controlled design help provide stable operating conditions that improve equipment reliability year after year.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eWhy an 800 mm Wide Cabinet?\u003c\/h1\u003e\n\u003cp\u003eThe wider enclosure isn't designed simply to hold more equipment—it is designed to make better use of the equipment already installed.\u003c\/p\u003e\n\u003cp\u003eThe additional width allows:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eCleaner fiber management\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eBetter separation of low-voltage and power wiring\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eEasier access around networking equipment\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eImproved installation of rack accessories\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMore organized service loops\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSimplified maintenance procedures\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eGreater flexibility for future upgrades\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eFor complex outdoor networking installations, improved organization often becomes just as valuable as additional rack capacity.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eSTURDX Hybrid Cooling Ready™\u003c\/h1\u003e\n\u003cp\u003eEvery Climate Series™ enclosure leaves the factory prepared for sealed closed-loop air conditioning while preserving the ability to add optional filtered fan ventilation later through factory-prepared openings.\u003c\/p\u003e\n\u003cp\u003eBecause no drilling or enclosure modifications are required, owners can adapt their cooling strategy over time without replacing the cabinet or compromising its structural integrity.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eProduct Description\u003c\/h1\u003e\n\u003cp\u003eThe \u003cstrong\u003eSTURDX Climate Series™ 42U Stainless Steel Outdoor Network Cabinet\u003c\/strong\u003e combines corrosion-resistant materials, advanced environmental protection, and flexible cooling options in a single outdoor enclosure designed for mission-critical applications.\u003c\/p\u003e\n\u003cp\u003eIts 800 mm wide interior provides generous workspace for organized equipment layouts while accommodating enterprise switches, industrial controllers, fiber optic distribution systems, UPS equipment, communication hardware, and power distribution assemblies.\u003c\/p\u003e\n\u003cp\u003eDesigned for years of dependable outdoor service, the Climate Series™ helps protect valuable electronics while reducing maintenance demands across some of the world's most demanding operating environments.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eTypical Applications\u003c\/h1\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eCoastal Telecommunications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMarine Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUtility Substations\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eWater \u0026amp; Wastewater Treatment\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFood Processing Facilities\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003ePharmaceutical Manufacturing\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eChemical Processing\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIndustrial Automation\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFiber Backbone Networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eEdge Computing\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eRenewable Energy\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSolar Farms\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eWind Energy\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSmart Grid Systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eTransportation Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSecurity Networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eOil \u0026amp; Gas\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMining\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eElectrical Distribution\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCritical Communications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eFrequently Asked Questions\u003c\/h1\u003e\n\u003ch3\u003eWhy choose a stainless steel climate-controlled cabinet?\u003c\/h3\u003e\n\u003cp\u003eWhen electronics operate in corrosive outdoor environments and generate heat, combining stainless steel construction with active climate control helps maximize equipment life, improve reliability, and reduce maintenance.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhy choose an 800 mm wide enclosure?\u003c\/h3\u003e\n\u003cp\u003eThe wider cabinet provides additional space for organized cable routing, larger rack accessories, improved service access, and cleaner equipment layouts—particularly for complex networking and industrial control systems.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhat is STURDX Hybrid Cooling Ready™?\u003c\/h3\u003e\n\u003cp\u003eSTURDX Hybrid Cooling Ready™ is our factory-prepared cooling platform that supports sealed closed-loop air conditioning while allowing optional filtered fan ventilation to be added later using removable blanking plates.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhy is the air conditioner shipped separately?\u003c\/h3\u003e\n\u003cp\u003eUnless factory installation is specifically requested, the air conditioner is shipped separately to minimize the risk of shipping damage. Every cabinet is factory-prepared with the required mounting cutout for straightforward installation on site.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eAre stainless steel air conditioners available?\u003c\/h3\u003e\n\u003cp\u003eYes. Standard enclosure air conditioners are available with \u003cstrong\u003estainless steel housings\u003c\/strong\u003e, and STURDX also offers \u003cstrong\u003eMade in USA IP66 stainless steel air conditioners\u003c\/strong\u003e for BABA-compliant and high-specification projects.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eIs 316 stainless steel available?\u003c\/h3\u003e\n\u003cp\u003eYes. Standard production uses \u003cstrong\u003e304 stainless steel\u003c\/strong\u003e, while \u003cstrong\u003e316 stainless steel\u003c\/strong\u003e and optional \u003cstrong\u003e316 stainless steel IP68 cable glands\u003c\/strong\u003e are available for offshore, marine, wastewater, and aggressive chemical environments.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eCan this enclosure be customized?\u003c\/h3\u003e\n\u003cp\u003eAbsolutely. STURDX offers custom dimensions, 304 or 316 stainless steel construction, OEM branding, electrical integration, cable entry modifications, project-specific cooling systems, and application-specific accessories engineered for virtually any outdoor installation.\u003c\/p\u003e"}

Cooling Capacity	Approx. BTU/hr	Features
300W	≈1,000 BTU/hr	Cooling • Heating • Dehumidifier • Remote Access
600W	≈2,000 BTU/hr	Cooling • Heating • Dehumidifier • Remote Access
2000W	≈8,000 BTU/hr	Cooling • Heating • Dehumidifier • Remote Access

STURDX Climate Series™ 42U IP66 Weatherproof Stainless Steel Outdoor Network Cabinet with Air Conditioner | 32" × 32" (800 × 800 mm) | 19-Inch Rack Enclosure

Product Overview

Technical Specifications

Standard Features

Available Air Conditioner Options

Standard 110V / 60Hz Air Conditioners

High-Capacity Cooling Systems

Made in USA Air Conditioners

Built for Critical Infrastructure

Why an 800 mm Wide Cabinet?

STURDX Hybrid Cooling Ready™

Product Description

Typical Applications

Frequently Asked Questions

Why choose a stainless steel climate-controlled cabinet?

Why choose an 800 mm wide enclosure?

What is STURDX Hybrid Cooling Ready™?

Why is the air conditioner shipped separately?

Are stainless steel air conditioners available?

Is 316 stainless steel available?

Can this enclosure be customized?

You may also like

Specification	Value
Series	STURDX Climate Series™
SKU	STX-CL-42U80802XD-SS
Rack Height	42U
Rack Standard	19-inch EIA-310
External Dimensions	31.5" × 31.5" (800 × 800 mm)
Material	304 Stainless Steel (316 Stainless Steel Available Upon Request)
Construction	Insulated Double-Wall Construction
Protection Rating	IP66
NEMA	Suitable for NEMA 4X Applications
Cooling	Air Conditioner Ready
Mounting Rails	Four Adjustable Rails Included
DIN Rail	Included
Door Switch	Included
Door Stopper	Included
Cable Glands	IP68 Rated Included (Optional 316 Stainless Steel Cable Glands Available)
Cable Entry	Bottom Knockouts
Doors	Lockable Front & Rear
Grounding	Included
Mounting Base	Floor Mounting Base Included
Lifting	Factory-Installed Lifting Eyebolts
