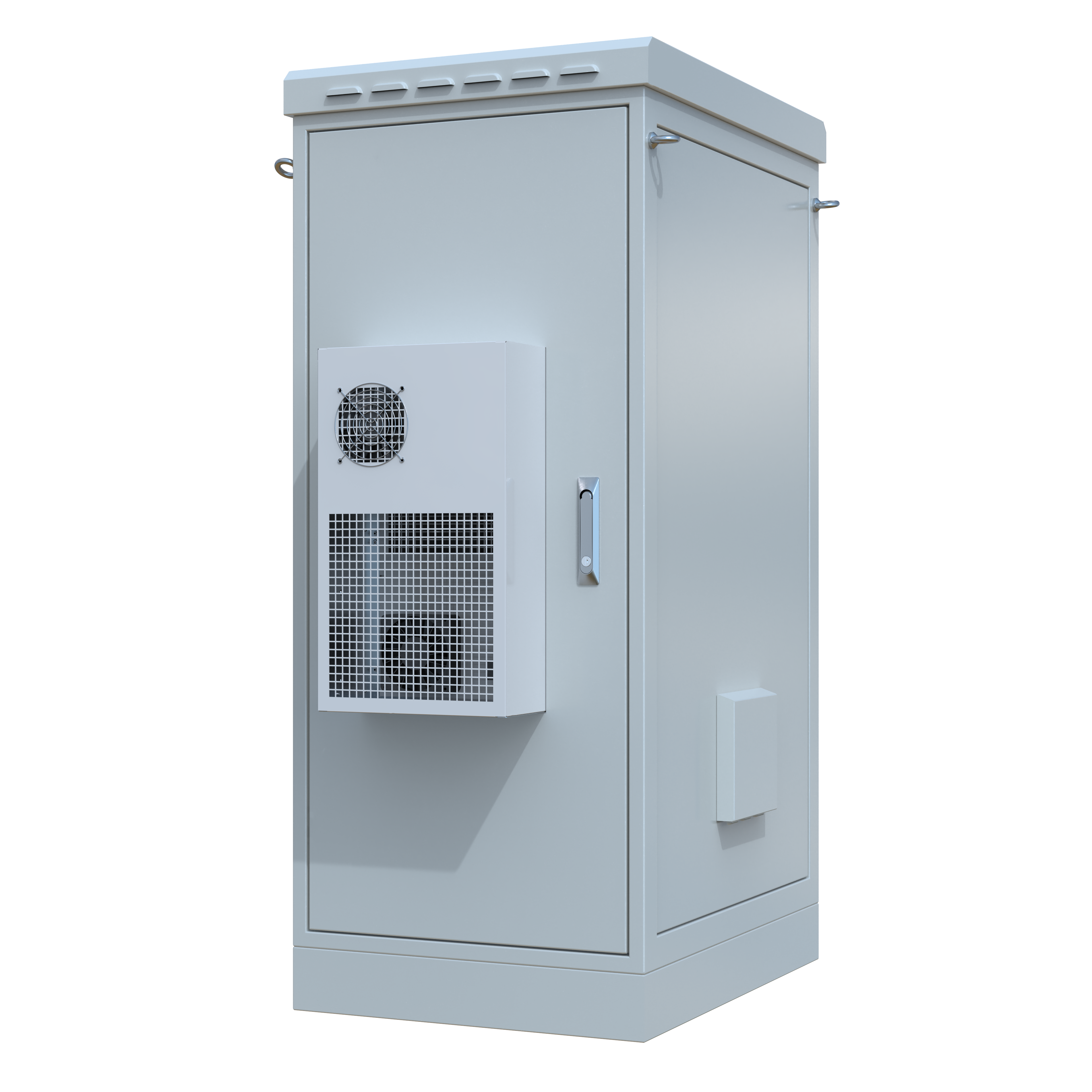

Name: STURDX Climate Series™ 26U IP66 Weatherproof Galvanized Steel Outdoor Network Cabinet with Air Conditioner | 24" × 32" (600 × 800 mm) | 19-Inch Rack Enclosure
Brand: STURDX
SKU: STX-CL-26U60802XD
Price: 2650.00 USD
Availability: InStock

{"id":10428174598423,"title":"STURDX Climate Series™ 26U IP66 Weatherproof Galvanized Steel Outdoor Network Cabinet with Air Conditioner | 24\" × 32\" (600 × 800 mm) | 19-Inch Rack Enclosure","handle":"26u-outdoor-network-cabinet-enclosure-ip66-rated-weatherproof-for-telecom-fiber-and-server-equipment-galvanized-with-air-conditioning-600mm-x-800mm-24-x-32-floor-wall-mount-stv-hc-26u600","description":"\u003ch2\u003eProduct Overview\u003c\/h2\u003e\n\u003cp\u003eThe \u003cstrong\u003eSTURDX Climate Series™ 26U IP66 Weatherproof Galvanized Steel Outdoor Network Cabinet with Air Conditioner (24\" × 32\" \/ 600 × 800 mm)\u003c\/strong\u003e is engineered for outdoor installations where \u003cstrong\u003edeeper rack equipment, controlled operating temperatures, and long-term reliability\u003c\/strong\u003e are essential. With \u003cstrong\u003e26U\u003c\/strong\u003e of rack capacity and an extended \u003cstrong\u003e24-inch × 32-inch (600 × 800 mm)\u003c\/strong\u003e footprint, the enclosure is optimized for networking hardware that requires additional rear clearance for power connections, fiber routing, and organized cable management.\u003c\/p\u003e\n\u003cp\u003eConstructed from heavy-duty galvanized steel with insulated double-wall construction, the enclosure protects valuable equipment against rain, dust, humidity, solar heat, and harsh outdoor environments. The increased cabinet depth creates additional installation flexibility while allowing technicians to maintain cleaner cable pathways and easier equipment access throughout the enclosure's service life.\u003c\/p\u003e\n\u003cp\u003eWhat sets the Climate Series™ apart is the \u003cstrong\u003eSTURDX Hybrid Cooling Ready™\u003c\/strong\u003e architecture. Every enclosure is factory-prepared for closed-loop air conditioning while incorporating concealed fan provisions protected by removable blanking plates. This unique configuration allows owners to introduce optional filtered fan ventilation later if site conditions change—without cutting, welding, or replacing the enclosure.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eTechnical Specifications\u003c\/h1\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003eSpecification\u003c\/th\u003e\n\u003cth\u003eValue\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSTURDX Climate Series™\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSKU\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003eSTX-CL-26U60802XD\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRack Height\u003c\/td\u003e\n\u003ctd\u003e26U\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRack Standard\u003c\/td\u003e\n\u003ctd\u003e19-inch EIA-310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eExternal Dimensions\u003c\/td\u003e\n\u003ctd\u003e23.6\" × 31.5\" (600 × 800 mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMaterial\u003c\/td\u003e\n\u003ctd\u003eGalvanized Steel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConstruction\u003c\/td\u003e\n\u003ctd\u003eInsulated Double-Wall Construction\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection Rating\u003c\/td\u003e\n\u003ctd\u003eIP66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNEMA\u003c\/td\u003e\n\u003ctd\u003eSuitable for NEMA 4 Applications\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eAir Conditioner Ready\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting Rails\u003c\/td\u003e\n\u003ctd\u003eFour Adjustable Rails Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDIN Rail\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoor Switch\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoor Stopper\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCable Glands\u003c\/td\u003e\n\u003ctd\u003eIP68 Rated Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCable Entry\u003c\/td\u003e\n\u003ctd\u003eBottom Knockouts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoors\u003c\/td\u003e\n\u003ctd\u003eLockable Front \u0026amp; Rear\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGrounding\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting Base\u003c\/td\u003e\n\u003ctd\u003eFloor Mounting Base Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLifting\u003c\/td\u003e\n\u003ctd\u003eFactory-Installed Lifting Eyebolts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003chr\u003e\n\u003ch1\u003eStandard Features\u003c\/h1\u003e\n\u003cp\u003eEvery STURDX Climate Series™ cabinet includes:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eHeavy-duty galvanized steel enclosure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eInsulated construction for improved thermal performance\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSTURDX Hybrid Cooling Ready™ platform\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIP66 weatherproof protection\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSuitable for NEMA 4 applications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFactory-prepared air conditioner opening\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCovered fan openings with removable blanking plates\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFour adjustable rack mounting rails\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDIN rail\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDoor switch\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDoor stopper\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIP68 cable glands\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eBottom cable entry knockouts\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eLockable front and rear doors\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003ePolyurethane sealing gasket\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIntegrated grounding system\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFloor mounting base\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFactory-installed lifting eyebolts\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eAir Conditioning Solutions\u003c\/h1\u003e\n\u003cp\u003eEvery Climate Series™ enclosure can be configured with the cooling system best suited to your installation.\u003c\/p\u003e\n\u003ch3\u003eStandard 110V \/ 60Hz Enclosure Air Conditioners\u003c\/h3\u003e\n\u003cp\u003eAvailable with either \u003cstrong\u003egalvanized\u003c\/strong\u003e or \u003cstrong\u003estainless steel\u003c\/strong\u003e housings.\u003c\/p\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003eCooling Capacity\u003c\/th\u003e\n\u003cth\u003eApprox. BTU\/hr\u003c\/th\u003e\n\u003cth\u003eFeatures\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e300W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈1,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e600W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈2,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2000W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈8,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003eCooling Only + Remote Access models are also available.\u003c\/p\u003e\n\u003ch3\u003eHigh-Capacity Systems\u003c\/h3\u003e\n\u003cp\u003eFor larger installations, STURDX also supplies:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e220V \/ 60Hz models\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCooling capacities up to \u003cstrong\u003e6000W\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUp to approximately \u003cstrong\u003e19,000 BTU\/hr\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eOur engineers can help determine the appropriate cooling capacity based on your installed equipment.\u003c\/p\u003e\n\u003ch3\u003eMade in USA Cooling Systems\u003c\/h3\u003e\n\u003cp\u003eSTURDX also offers \u003cstrong\u003eMade in USA IP66 stainless steel enclosure air conditioners\u003c\/strong\u003e for projects requiring \u003cstrong\u003eBABA compliance\u003c\/strong\u003e, domestic manufacturing, or higher environmental protection.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eDesigned for Deeper Equipment with Superior Thermal Stability\u003c\/h1\u003e\n\u003cp\u003eModern outdoor infrastructure increasingly relies on enterprise switches, industrial computers, rack-mounted UPS systems, and communication hardware that extend beyond the depth of traditional outdoor enclosures. The \u003cstrong\u003e24\" × 32\" (600 × 800 mm)\u003c\/strong\u003e Climate Series™ cabinet provides the additional rear clearance needed to install and service this equipment without restricting cable movement or airflow.\u003c\/p\u003e\n\u003cp\u003eThe deeper insulated enclosure also improves temperature consistency by allowing conditioned air to circulate more evenly around installed hardware, helping reduce thermal hotspots while improving equipment reliability during continuous outdoor operation.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eSTURDX Hybrid Cooling Ready™\u003c\/h1\u003e\n\u003cp\u003eUnlike traditional outdoor enclosures that commit users to a single cooling method, the Climate Series™ is designed to evolve with your project.\u003c\/p\u003e\n\u003cp\u003eEvery cabinet ships configured for sealed air-conditioned operation, while removable blanking plates preserve the option to install filtered fan ventilation in the future.\u003c\/p\u003e\n\u003cp\u003eThis flexibility can be valuable when:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eEquipment is upgraded\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eThermal loads change\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSeasonal temperatures vary\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMaintenance is being performed\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFuture operating requirements evolve\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eProduct Description\u003c\/h1\u003e\n\u003cp\u003eThe \u003cstrong\u003eSTURDX Climate Series™ 26U Galvanized Steel Outdoor Network Cabinet\u003c\/strong\u003e provides a dependable climate-controlled environment for networking, industrial automation, electrical distribution, and communication equipment requiring additional installation depth. Its insulated double-wall construction, generous interior space, and IP66 weatherproof protection create an ideal operating environment for medium-capacity outdoor infrastructure while simplifying future maintenance and system expansion.\u003c\/p\u003e\n\u003cp\u003eDesigned for organizations seeking dependable cooling performance without increasing cabinet width, this enclosure combines installation flexibility with long-term environmental protection.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eTypical Applications\u003c\/h1\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eEnterprise Network Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFiber Optic Distribution\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eTelecommunications Equipment\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIndustrial Ethernet Networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUtility Automation\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eRenewable Energy\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSolar Monitoring Systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eElectrical Distribution\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eWater \u0026amp; Wastewater Facilities\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eManufacturing Plants\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eTransportation Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSmart City Networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eEdge Computing\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSecurity \u0026amp; Surveillance\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIndustrial Control Systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eOil \u0026amp; Gas\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMining\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eOutdoor Communications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eRemote Monitoring\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCritical Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eFrequently Asked Questions\u003c\/h1\u003e\n\u003ch3\u003eWhy choose a climate-controlled 24\" × 32\" outdoor cabinet?\u003c\/h3\u003e\n\u003cp\u003eThe additional cabinet depth accommodates deeper networking equipment while the insulated construction and air conditioning system maintain stable operating temperatures for reliable long-term performance.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhat is STURDX Hybrid Cooling Ready™?\u003c\/h3\u003e\n\u003cp\u003eSTURDX Hybrid Cooling Ready™ is our factory-prepared cooling platform that allows every Climate Series™ cabinet to operate as a sealed air-conditioned enclosure while remaining ready for optional filtered fan ventilation if future operating conditions require it.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhich air conditioner capacities are available?\u003c\/h3\u003e\n\u003cp\u003eStandard enclosure air conditioners are available in \u003cstrong\u003e300W, 600W, and 2000W\u003c\/strong\u003e capacities, with larger \u003cstrong\u003e220V systems up to 6000W\u003c\/strong\u003e also available for high-performance outdoor applications.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eAre Cooling Only models available?\u003c\/h3\u003e\n\u003cp\u003eYes. In addition to Cooling • Heating • Dehumidifier models, \u003cstrong\u003eCooling Only + Remote Access\u003c\/strong\u003e configurations are also available.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhy is additional cabinet depth beneficial for climate-controlled systems?\u003c\/h3\u003e\n\u003cp\u003eThe deeper enclosure provides more room for rear cable routing, improves conditioned air circulation around equipment, accommodates larger devices, and simplifies future maintenance.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eIs this enclosure suitable for NEMA applications?\u003c\/h3\u003e\n\u003cp\u003eYes. The galvanized steel enclosure is suitable for applications commonly requiring \u003cstrong\u003eNEMA 4\u003c\/strong\u003e performance. Contact STURDX if your project requires a specific certified NEMA enclosure.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eDoes the cabinet include lifting eyebolts?\u003c\/h3\u003e\n\u003cp\u003eYes. Factory-installed lifting eyebolts simplify transportation, unloading, crane handling, and positioning during installation.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eCan STURDX customize this enclosure?\u003c\/h3\u003e\n\u003cp\u003eYes. Climate Series™ cabinets can be customized with different dimensions, electrical integration, cable entry locations, OEM branding, enclosure cooling systems, gland plates, rack accessories, and application-specific configurations for virtually any outdoor networking, industrial, or utility application.\u003c\/p\u003e","published_at":"2026-09-02T17:23:34-05:00","created_at":"2026-07-20T03:37:15-05:00","vendor":"STURDX ","type":"Floor Standing Outdoor Network Cabinets","tags":["19\" Equipment Mounting","19\" Rack Systems","All-Weather Network Cabinet","Custom-Made Outdoor Cabinets","Dust and Water Protection","Environmental Protection Cabinet","Environments","Equipment Protection","Exterior Network Rack Enclosure","Galvanized Steel Construction","IP54 Fan and Filter Compatibility","IP55 Rated Cabinet","IP55 Rated Network Cabinet","Network Cabinet for Harsh","Network Rack for Outdoor Use","Outdoor Data Center Cabinet","Outdoor Electronics Enclosure","Outdoor IT Cabinet","Outdoor IT Rack Cabinet","Outdoor Network Cabinet","Outdoor Network Cabinet Solutions","Outdoor Network Equipment Cabinet","Outdoor Network Equipment Protection","Outdoor Network Server Cabinet","Outdoor Network Storage Cabinet","Outdoor Rack Cabinet","Outdoor Server Cabinet","Pole or Wall Mountable Cabinet","Rack Cabinet Solution","Ral 7035 Epoxy Coating","Vatpan Rack Cabinet","Waterproof Network Rack Cabinet","Watertight Seal","Weatherproof Network Enclosure"],"price":265000,"price_min":265000,"price_max":265000,"available":true,"price_varies":false,"compare_at_price":400000,"compare_at_price_min":400000,"compare_at_price_max":400000,"compare_at_price_varies":false,"variants":[{"id":54163224592663,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"STX-CL-26U60802XD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STURDX Climate Series™ 26U IP66 Weatherproof Galvanized Steel Outdoor Network Cabinet with Air Conditioner | 24\" × 32\" (600 × 800 mm) | 19-Inch Rack Enclosure","public_title":null,"options":["Default Title"],"price":265000,"weight":0,"compare_at_price":400000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/STURDX-IP66_withAC_26U600X800.png?v=1787562771"],"featured_image":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/STURDX-IP66_withAC_26U600X800.png?v=1787562771","options":["Title"],"media":[{"alt":null,"id":44749365313815,"position":1,"preview_image":{"aspect_ratio":1.0,"height":3840,"width":3840,"src":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/STURDX-IP66_withAC_26U600X800.png?v=1787562771"},"aspect_ratio":1.0,"height":3840,"media_type":"image","src":"\/\/www.serverrackcabinets.com\/cdn\/shop\/files\/STURDX-IP66_withAC_26U600X800.png?v=1787562771","width":3840}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch2\u003eProduct Overview\u003c\/h2\u003e\n\u003cp\u003eThe \u003cstrong\u003eSTURDX Climate Series™ 26U IP66 Weatherproof Galvanized Steel Outdoor Network Cabinet with Air Conditioner (24\" × 32\" \/ 600 × 800 mm)\u003c\/strong\u003e is engineered for outdoor installations where \u003cstrong\u003edeeper rack equipment, controlled operating temperatures, and long-term reliability\u003c\/strong\u003e are essential. With \u003cstrong\u003e26U\u003c\/strong\u003e of rack capacity and an extended \u003cstrong\u003e24-inch × 32-inch (600 × 800 mm)\u003c\/strong\u003e footprint, the enclosure is optimized for networking hardware that requires additional rear clearance for power connections, fiber routing, and organized cable management.\u003c\/p\u003e\n\u003cp\u003eConstructed from heavy-duty galvanized steel with insulated double-wall construction, the enclosure protects valuable equipment against rain, dust, humidity, solar heat, and harsh outdoor environments. The increased cabinet depth creates additional installation flexibility while allowing technicians to maintain cleaner cable pathways and easier equipment access throughout the enclosure's service life.\u003c\/p\u003e\n\u003cp\u003eWhat sets the Climate Series™ apart is the \u003cstrong\u003eSTURDX Hybrid Cooling Ready™\u003c\/strong\u003e architecture. Every enclosure is factory-prepared for closed-loop air conditioning while incorporating concealed fan provisions protected by removable blanking plates. This unique configuration allows owners to introduce optional filtered fan ventilation later if site conditions change—without cutting, welding, or replacing the enclosure.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eTechnical Specifications\u003c\/h1\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003eSpecification\u003c\/th\u003e\n\u003cth\u003eValue\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSeries\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eSTURDX Climate Series™\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003eSKU\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003eSTX-CL-26U60802XD\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRack Height\u003c\/td\u003e\n\u003ctd\u003e26U\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRack Standard\u003c\/td\u003e\n\u003ctd\u003e19-inch EIA-310\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eExternal Dimensions\u003c\/td\u003e\n\u003ctd\u003e23.6\" × 31.5\" (600 × 800 mm)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMaterial\u003c\/td\u003e\n\u003ctd\u003eGalvanized Steel\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConstruction\u003c\/td\u003e\n\u003ctd\u003eInsulated Double-Wall Construction\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eProtection Rating\u003c\/td\u003e\n\u003ctd\u003eIP66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNEMA\u003c\/td\u003e\n\u003ctd\u003eSuitable for NEMA 4 Applications\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eAir Conditioner Ready\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting Rails\u003c\/td\u003e\n\u003ctd\u003eFour Adjustable Rails Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDIN Rail\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoor Switch\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoor Stopper\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCable Glands\u003c\/td\u003e\n\u003ctd\u003eIP68 Rated Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCable Entry\u003c\/td\u003e\n\u003ctd\u003eBottom Knockouts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDoors\u003c\/td\u003e\n\u003ctd\u003eLockable Front \u0026amp; Rear\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eGrounding\u003c\/td\u003e\n\u003ctd\u003eIncluded\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMounting Base\u003c\/td\u003e\n\u003ctd\u003eFloor Mounting Base Included\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLifting\u003c\/td\u003e\n\u003ctd\u003eFactory-Installed Lifting Eyebolts\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003chr\u003e\n\u003ch1\u003eStandard Features\u003c\/h1\u003e\n\u003cp\u003eEvery STURDX Climate Series™ cabinet includes:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eHeavy-duty galvanized steel enclosure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eInsulated construction for improved thermal performance\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSTURDX Hybrid Cooling Ready™ platform\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIP66 weatherproof protection\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSuitable for NEMA 4 applications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFactory-prepared air conditioner opening\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCovered fan openings with removable blanking plates\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFour adjustable rack mounting rails\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDIN rail\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDoor switch\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eDoor stopper\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIP68 cable glands\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eBottom cable entry knockouts\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eLockable front and rear doors\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003ePolyurethane sealing gasket\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIntegrated grounding system\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFloor mounting base\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFactory-installed lifting eyebolts\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eAir Conditioning Solutions\u003c\/h1\u003e\n\u003cp\u003eEvery Climate Series™ enclosure can be configured with the cooling system best suited to your installation.\u003c\/p\u003e\n\u003ch3\u003eStandard 110V \/ 60Hz Enclosure Air Conditioners\u003c\/h3\u003e\n\u003cp\u003eAvailable with either \u003cstrong\u003egalvanized\u003c\/strong\u003e or \u003cstrong\u003estainless steel\u003c\/strong\u003e housings.\u003c\/p\u003e\n\u003ctable\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth\u003eCooling Capacity\u003c\/th\u003e\n\u003cth\u003eApprox. BTU\/hr\u003c\/th\u003e\n\u003cth\u003eFeatures\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e300W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈1,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e600W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈2,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cstrong\u003e2000W\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003e≈8,000 BTU\/hr\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003eCooling • Heating • Dehumidifier • Remote Access\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003eCooling Only + Remote Access models are also available.\u003c\/p\u003e\n\u003ch3\u003eHigh-Capacity Systems\u003c\/h3\u003e\n\u003cp\u003eFor larger installations, STURDX also supplies:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e220V \/ 60Hz models\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCooling capacities up to \u003cstrong\u003e6000W\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUp to approximately \u003cstrong\u003e19,000 BTU\/hr\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003eOur engineers can help determine the appropriate cooling capacity based on your installed equipment.\u003c\/p\u003e\n\u003ch3\u003eMade in USA Cooling Systems\u003c\/h3\u003e\n\u003cp\u003eSTURDX also offers \u003cstrong\u003eMade in USA IP66 stainless steel enclosure air conditioners\u003c\/strong\u003e for projects requiring \u003cstrong\u003eBABA compliance\u003c\/strong\u003e, domestic manufacturing, or higher environmental protection.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eDesigned for Deeper Equipment with Superior Thermal Stability\u003c\/h1\u003e\n\u003cp\u003eModern outdoor infrastructure increasingly relies on enterprise switches, industrial computers, rack-mounted UPS systems, and communication hardware that extend beyond the depth of traditional outdoor enclosures. The \u003cstrong\u003e24\" × 32\" (600 × 800 mm)\u003c\/strong\u003e Climate Series™ cabinet provides the additional rear clearance needed to install and service this equipment without restricting cable movement or airflow.\u003c\/p\u003e\n\u003cp\u003eThe deeper insulated enclosure also improves temperature consistency by allowing conditioned air to circulate more evenly around installed hardware, helping reduce thermal hotspots while improving equipment reliability during continuous outdoor operation.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eSTURDX Hybrid Cooling Ready™\u003c\/h1\u003e\n\u003cp\u003eUnlike traditional outdoor enclosures that commit users to a single cooling method, the Climate Series™ is designed to evolve with your project.\u003c\/p\u003e\n\u003cp\u003eEvery cabinet ships configured for sealed air-conditioned operation, while removable blanking plates preserve the option to install filtered fan ventilation in the future.\u003c\/p\u003e\n\u003cp\u003eThis flexibility can be valuable when:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eEquipment is upgraded\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eThermal loads change\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSeasonal temperatures vary\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMaintenance is being performed\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFuture operating requirements evolve\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eProduct Description\u003c\/h1\u003e\n\u003cp\u003eThe \u003cstrong\u003eSTURDX Climate Series™ 26U Galvanized Steel Outdoor Network Cabinet\u003c\/strong\u003e provides a dependable climate-controlled environment for networking, industrial automation, electrical distribution, and communication equipment requiring additional installation depth. Its insulated double-wall construction, generous interior space, and IP66 weatherproof protection create an ideal operating environment for medium-capacity outdoor infrastructure while simplifying future maintenance and system expansion.\u003c\/p\u003e\n\u003cp\u003eDesigned for organizations seeking dependable cooling performance without increasing cabinet width, this enclosure combines installation flexibility with long-term environmental protection.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch1\u003eTypical Applications\u003c\/h1\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003eEnterprise Network Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eFiber Optic Distribution\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eTelecommunications Equipment\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIndustrial Ethernet Networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eUtility Automation\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eRenewable Energy\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSolar Monitoring Systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eElectrical Distribution\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eWater \u0026amp; Wastewater Facilities\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eManufacturing Plants\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eTransportation Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSmart City Networks\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eEdge Computing\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eSecurity \u0026amp; Surveillance\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eIndustrial Control Systems\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eOil \u0026amp; Gas\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eMining\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eOutdoor Communications\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eRemote Monitoring\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003eCritical Infrastructure\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003chr\u003e\n\u003ch1\u003eFrequently Asked Questions\u003c\/h1\u003e\n\u003ch3\u003eWhy choose a climate-controlled 24\" × 32\" outdoor cabinet?\u003c\/h3\u003e\n\u003cp\u003eThe additional cabinet depth accommodates deeper networking equipment while the insulated construction and air conditioning system maintain stable operating temperatures for reliable long-term performance.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhat is STURDX Hybrid Cooling Ready™?\u003c\/h3\u003e\n\u003cp\u003eSTURDX Hybrid Cooling Ready™ is our factory-prepared cooling platform that allows every Climate Series™ cabinet to operate as a sealed air-conditioned enclosure while remaining ready for optional filtered fan ventilation if future operating conditions require it.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhich air conditioner capacities are available?\u003c\/h3\u003e\n\u003cp\u003eStandard enclosure air conditioners are available in \u003cstrong\u003e300W, 600W, and 2000W\u003c\/strong\u003e capacities, with larger \u003cstrong\u003e220V systems up to 6000W\u003c\/strong\u003e also available for high-performance outdoor applications.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eAre Cooling Only models available?\u003c\/h3\u003e\n\u003cp\u003eYes. In addition to Cooling • Heating • Dehumidifier models, \u003cstrong\u003eCooling Only + Remote Access\u003c\/strong\u003e configurations are also available.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eWhy is additional cabinet depth beneficial for climate-controlled systems?\u003c\/h3\u003e\n\u003cp\u003eThe deeper enclosure provides more room for rear cable routing, improves conditioned air circulation around equipment, accommodates larger devices, and simplifies future maintenance.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eIs this enclosure suitable for NEMA applications?\u003c\/h3\u003e\n\u003cp\u003eYes. The galvanized steel enclosure is suitable for applications commonly requiring \u003cstrong\u003eNEMA 4\u003c\/strong\u003e performance. Contact STURDX if your project requires a specific certified NEMA enclosure.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eDoes the cabinet include lifting eyebolts?\u003c\/h3\u003e\n\u003cp\u003eYes. Factory-installed lifting eyebolts simplify transportation, unloading, crane handling, and positioning during installation.\u003c\/p\u003e\n\u003chr\u003e\n\u003ch3\u003eCan STURDX customize this enclosure?\u003c\/h3\u003e\n\u003cp\u003eYes. Climate Series™ cabinets can be customized with different dimensions, electrical integration, cable entry locations, OEM branding, enclosure cooling systems, gland plates, rack accessories, and application-specific configurations for virtually any outdoor networking, industrial, or utility application.\u003c\/p\u003e"}

Cooling Capacity	Approx. BTU/hr	Features
300W	≈1,000 BTU/hr	Cooling • Heating • Dehumidifier • Remote Access
600W	≈2,000 BTU/hr	Cooling • Heating • Dehumidifier • Remote Access
2000W	≈8,000 BTU/hr	Cooling • Heating • Dehumidifier • Remote Access

STURDX Climate Series™ 26U IP66 Weatherproof Galvanized Steel Outdoor Network Cabinet with Air Conditioner | 24" × 32" (600 × 800 mm) | 19-Inch Rack Enclosure

Product Overview

Technical Specifications

Standard Features

Air Conditioning Solutions

Standard 110V / 60Hz Enclosure Air Conditioners

High-Capacity Systems

Made in USA Cooling Systems

Designed for Deeper Equipment with Superior Thermal Stability

STURDX Hybrid Cooling Ready™

Product Description

Typical Applications

Frequently Asked Questions

Why choose a climate-controlled 24" × 32" outdoor cabinet?

What is STURDX Hybrid Cooling Ready™?

Which air conditioner capacities are available?

Are Cooling Only models available?

Why is additional cabinet depth beneficial for climate-controlled systems?

Is this enclosure suitable for NEMA applications?

Does the cabinet include lifting eyebolts?

Can STURDX customize this enclosure?

You may also like

Specification	Value
Series	STURDX Climate Series™
SKU	STX-CL-26U60802XD
Rack Height	26U
Rack Standard	19-inch EIA-310
External Dimensions	23.6" × 31.5" (600 × 800 mm)
Material	Galvanized Steel
Construction	Insulated Double-Wall Construction
Protection Rating	IP66
NEMA	Suitable for NEMA 4 Applications
Cooling	Air Conditioner Ready
Mounting Rails	Four Adjustable Rails Included
DIN Rail	Included
Door Switch	Included
Door Stopper	Included
Cable Glands	IP68 Rated Included
Cable Entry	Bottom Knockouts
Doors	Lockable Front & Rear
Grounding	Included
Mounting Base	Floor Mounting Base Included
Lifting	Factory-Installed Lifting Eyebolts
