26U Outdoor Network Cabinet – IP66 / NEMA 4 with Advanced Cooling Options (Multiple Configurations)
PRODUCT OVERVIEW
The 26U Outdoor Network Cabinet is engineered for large-scale outdoor deployments where maximum capacity, advanced thermal control, and uncompromising environmental protection are required. Designed for telecom infrastructure, battery systems, industrial automation, and outdoor server applications, this enclosure provides a complete solution for housing high-density equipment in demanding field environments.
With IP55 and IP66 (NEMA 3 & 4) rated weatherproof protection, the cabinet ensures full resistance against dust, heavy rain, and direct water exposure. Its large internal volume allows structured equipment layout, efficient cable management, and seamless integration of advanced cooling systems, making it suitable for mission-critical installations where reliability is essential.
The 26U platform is specifically built to support active climate control systems, making it suitable for high heat-generating equipment and mission-critical installations. With multiple configurations available, including integrated air conditioning systems and large-format insulated double-wall designs, this cabinet provides the flexibility required for complex outdoor infrastructure projects.
You can find the model that best suits your needs under the “Air Conditioners” page in the Products section. If you cannot find what you are looking for, please do not hesitate to contact us.
CUSTOM MANUFACTURING
If standard configurations do not meet your project requirements, custom production is available.
Options include:
- Custom dimensions and layouts
- Custom colors
- Stainless steel or aluminum construction
- Additional rear access, cutouts and integrations
Typical lead time: 4–6 weeks
CONFIGURATION OPTIONS
Please select the appropriate option from the dropdown menu based on your thermal load and infrastructure requirements.
A/C units can be installed on both IP55 and IP66 cabinets. All cabinets with fans are technically rated around IP55, since they require openings for airflow. IP66 enclosures, on the other hand, are completely sealed and are best used with air conditioning or for equipment that does not generate heat.
Unless you are operating in very harsh environments -such as cement factories, mining sites, heavy industrial facilities, or desert areas with intense dust - IP66 is generally unnecessary. For real-world outdoor applications, IP55 is more than sufficient and performs reliably under storms, heavy rain, wind, and typical environmental conditions.
STV-HC-26U600 Cabinet Only (Fan / Cooling Ready)
This configuration includes the enclosure prepared for airflow-based cooling systems or external cooling integration.
It is suitable for installations where heat load is low to moderate or where external cooling systems will be applied separately. The cabinet provides full IP55 / NEMA 3 protection, ensuring reliable performance in outdoor environments exposed to dust and heavy rain.
OPTION 2: 26U Cabinet with Integrated A/C Systems
This configuration includes integrated air conditioning options available in 300W, 600W, and 2000W capacities, with both110V AC and 48V DC power supply options, allowing full flexibility across different infrastructure types including telecom DC systems and grid-powered installations.
Our air conditioners are available in a wide range of capacities and features, with models ranging from 1,000 BTU to 19,000 BTU. Options include cooling-only units, as well as models with additional heating and dehumidification functions. Remote access features such as Ethernet or RS485 connectivity are also available.
You can find the model that best suits your needs under the “Air Conditioners” page in the Products section. If you cannot find what you are looking for, please do not hesitate to contact us.
Compatible A/C Units (20U Cabinets)
-
STV-AN01 (1010BTU 110V)
STV-AN02 (2050 BTU 110V)
STV-AN08 (8000 BTU 110V)
STV-AT19 (19000 BTU 220V)
STV-MCA600AC (2050 BTU 110V)
STV-MCA600ACHD (2050 BTU 110V)
STV-BPD300ACHD (1024 BTU 48V DC)
STV-BPD600ACHD (2050 BTU 48V DC)
STV-MCA2000AC (8000 BTU 110V)
STV-MCA2000ACHD (8000 BTU 110V)
STV-BPD2000ACHD (8000 BTU 48V DC)

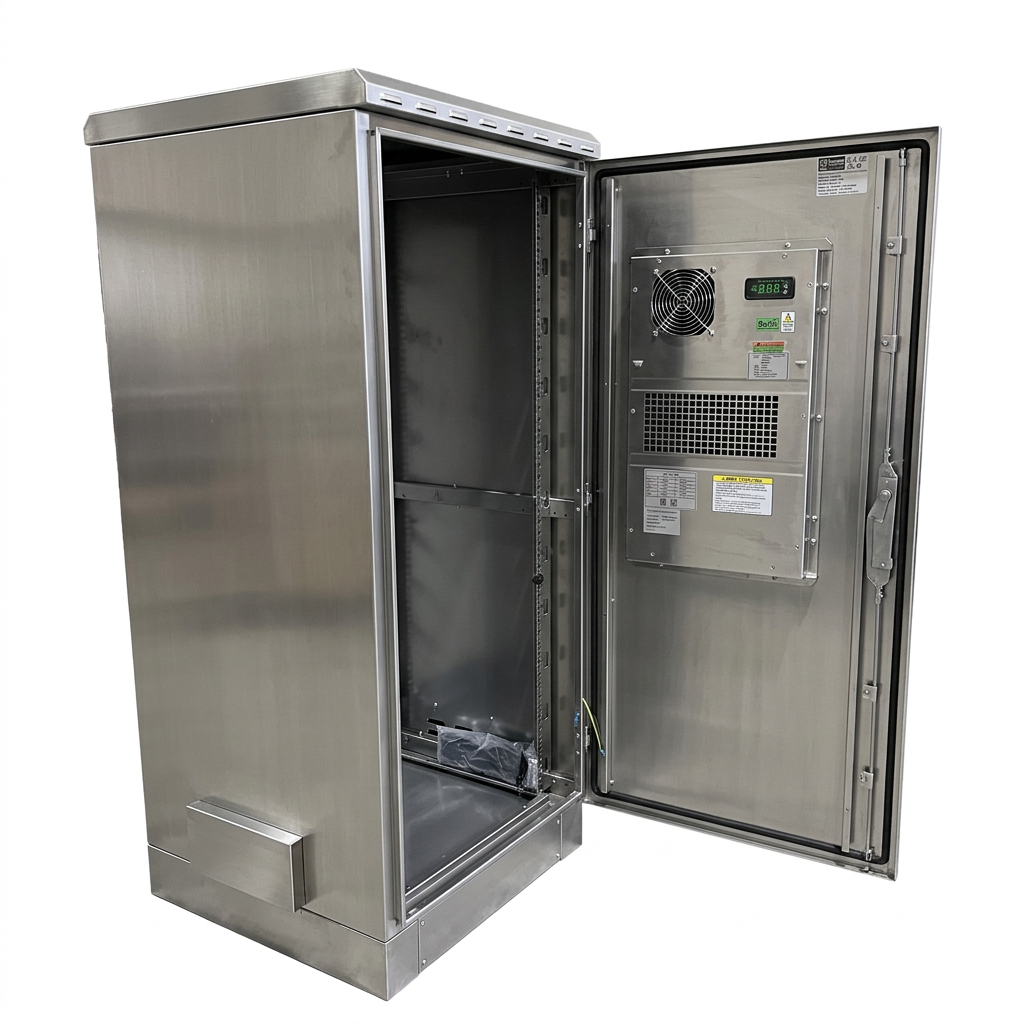

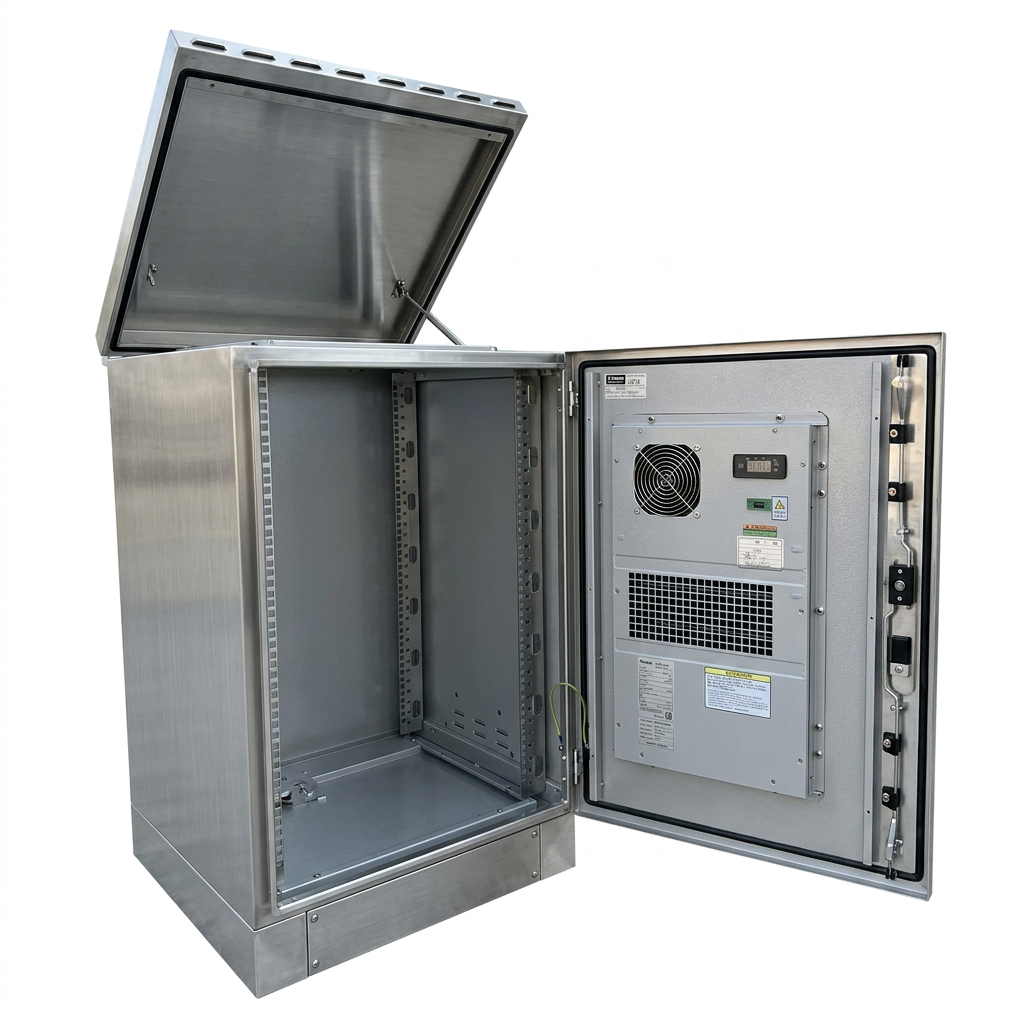

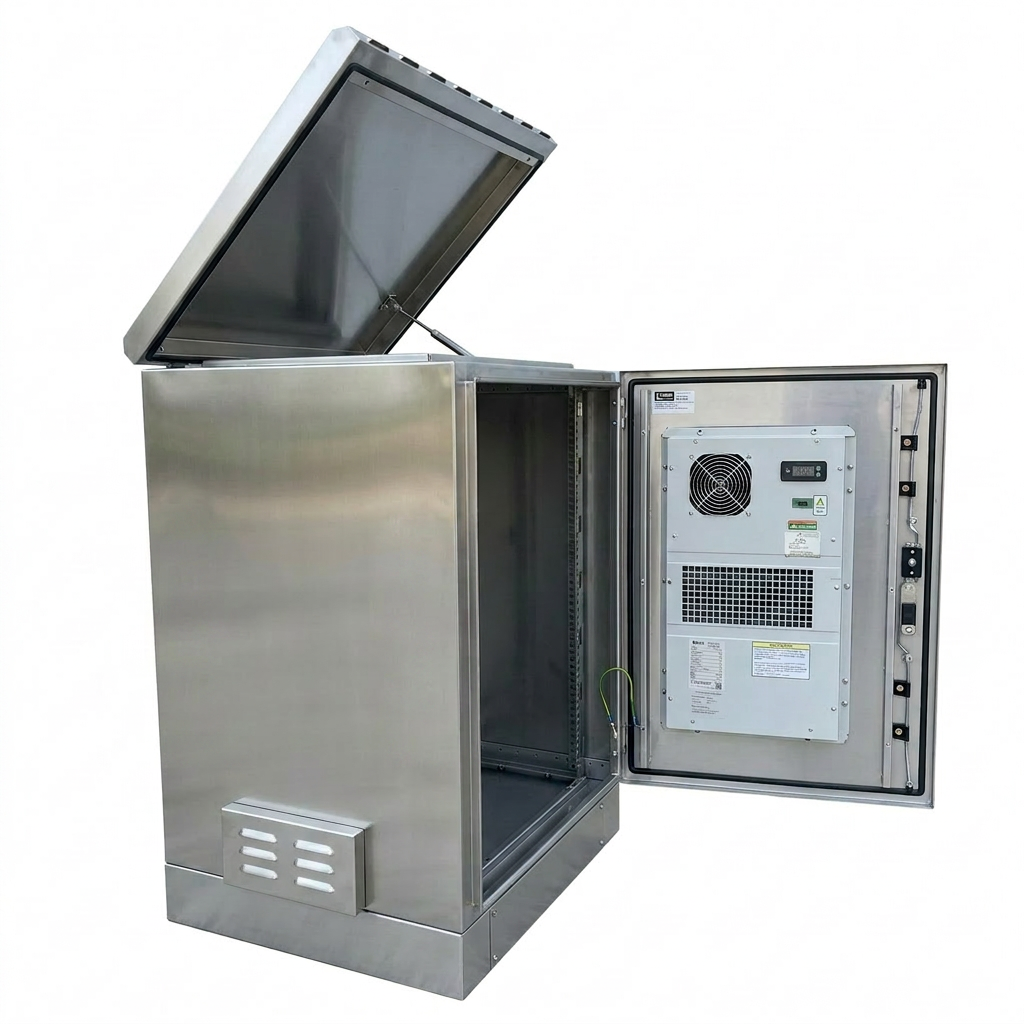

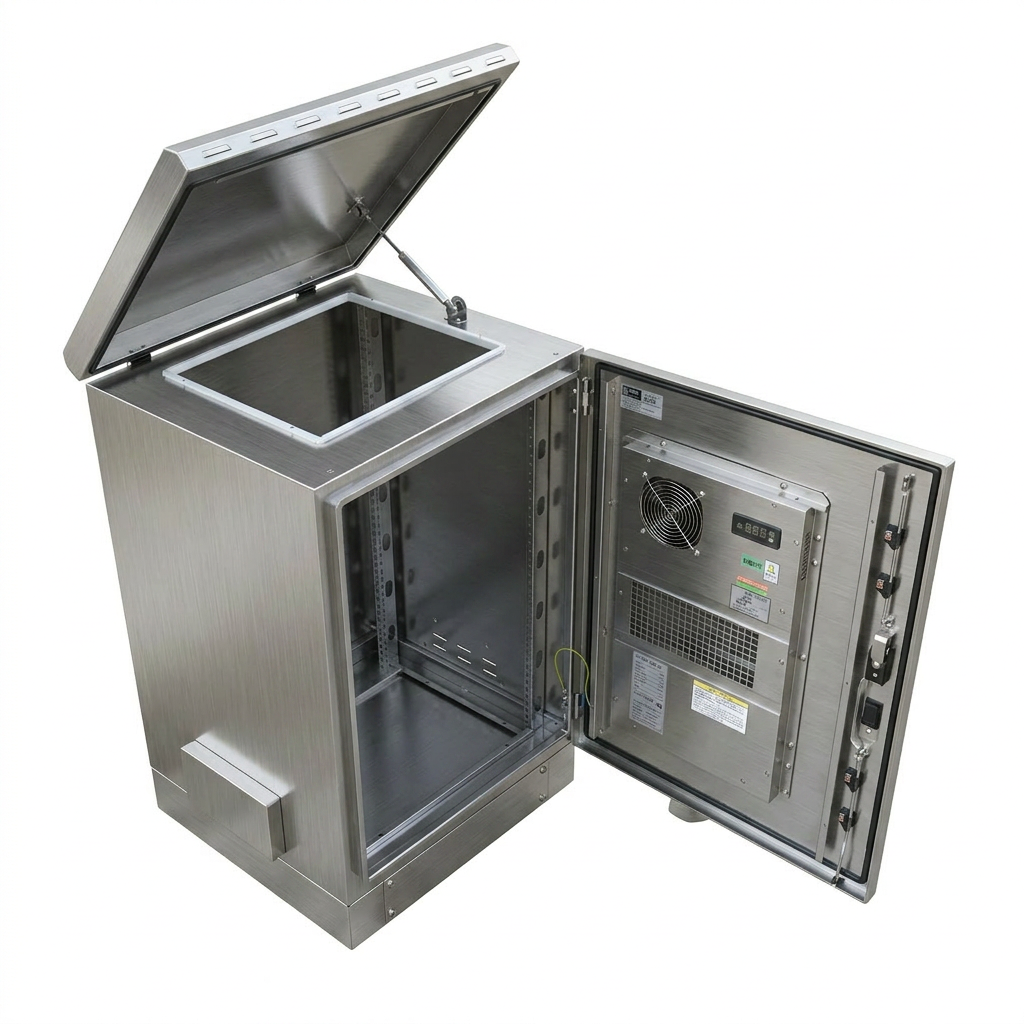

Air conditioning units are typically installed on the front door of the cabinets unless otherwise specified.
Link to the a/c units:
https://www.serverrackcabinets.com/collections/fans-ac-units
These configurations provide precise control over temperature and humidity, ensuring optimal internal conditions for sensitive equipment under varying environmental conditions.
POWER FLEXIBILITY
The availability of both 110V AC and 48V DC A/C systems makes this cabinet suitable for:
- Grid-powered installations
- Telecom infrastructure using DC power systems
- Solar and battery-based deployments
- Remote and off-grid locations
This eliminates the need for additional power conversion and improves system efficiency.
ADDITIONAL CONFIGURATIONS (INSULATED DOUBLE-WALL & REAR ACCESS)
For high-capacity and mission-critical applications, the cabinet is also available in large-format insulated double-wall configurations with rear access.
Available sizes include:
- 24” x 32” (600 x 800 mm)
- 32” x 32” (800 x 800 mm)
- 32” x 39” (800 x 1000 mm)
- 39” x 39” (1000 x 1000 mm)
These configurations provide:
- Insulated double-wall construction for thermal protection
- Rear access door for easier maintenance and cable management
- Increased internal volume for batteries and large equipment
- Compatibility with high-capacity A/C systems
- Improved structural strength for heavy-duty deployments
These versions are strongly recommended for high heat load environments and critical infrastructure systems.
TECHNICAL SPECIFICATIONS
The cabinet is constructed from galvanized steel with a heavy-duty outdoor powder-coated finish for long-term durability.
- Rack Capacity: 26U (19” standard)
- Width: 24” (600 mm)
- Depth: 24” (600 mm)
- Height: approximately 56”
- Protection Rating: IP55 and IP66 / NEMA 4
- Cooling: Fan, heat exchanger, and integrated A/C compatible
- Mounting: Floor-standing / pad-mount
- Locking System: Industrial-grade secure lock
- Rear Door: Easy access from front and back of the cabinet.
WEATHERPROOF PROTECTION
The cabinet provides IP66 and NEMA 4 protection, ensuring:
- Full protection against dust
- Resistance against heavy rain and direct water exposure
This guarantees reliable performance in exposed outdoor environments such as telecom sites, industrial facilities, and roadside installations.
ADVANCED THERMAL MANAGEMENT
Thermal control is critical for high-density outdoor systems.
The 26U platform supports:
- Integrated air conditioning systems
- Heating functionality for cold climates
- Dehumidification to prevent condensation
- Fan-based airflow systems
- Remote Access
This ensures stable internal conditions, protects equipment, and extends system lifespan.
WHAT’S INCLUDED
Each cabinet is delivered fully assembled and ready for deployment. Depending on configuration, the package includes:
- Outdoor cabinet enclosure
- Lockable sealed front and rear doors
- Internal 19” rack rails
- Cable entry points
- Mounting base
- Integrated A/C unit (if selected)
- Pre-configured airflow system IP 55
Optional accessories include fan modules, power distribution units, shelves, and monitoring systems.
APPLICATIONS
This cabinet is designed for:
- Telecom infrastructure and base stations
- Battery energy storage systems
- Industrial automation and control systems
- Outdoor server and networking
- Edge computing deployments
COMPETITIVE POSITIONING
Compared to others, this solution offers a more flexible and deployment-focused approach with integrated cooling options, multiple power configurations, and significantly reduced lead times.
- In stock and ready to ship
- Ships from Texas
- Faster deployment timelines
- Custom builds available in 4–6 weeks
Select the appropriate configuration from the dropdown menu based on your cooling capacity and power requirements.
For higher-capacity cooling systems or custom configurations beyond the listed options, please contact our team to define a solution tailored to your project.
